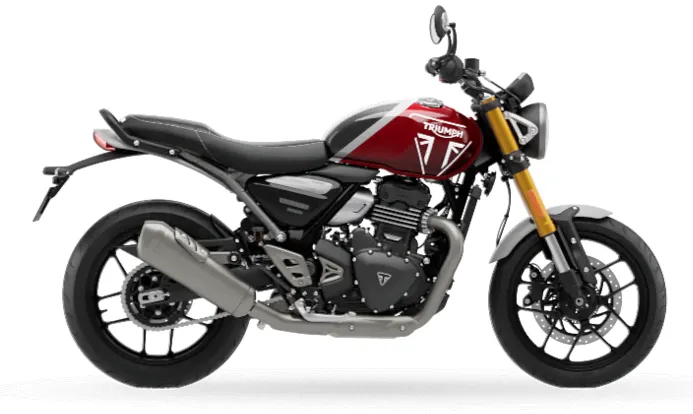

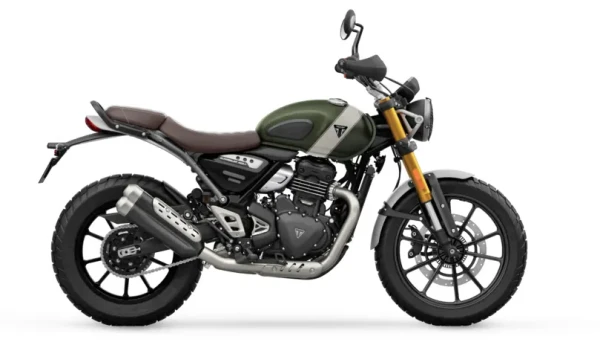

Triumph 400/400x plug & play alarm system. Simple Plug & Play fitting for the Triumph Speed 400 & Scrambler 400x, fully fitted in about less than an hour.
Simply plug the unit into the connector plugs fitted to the bike, mount & plug in the siren, fit & plug in the stick on LED and away you go. Supplied with comprehensive instructions, basic tools requires a 10mm spanner, 5mm allen key & a few small flat blade screw drivers.

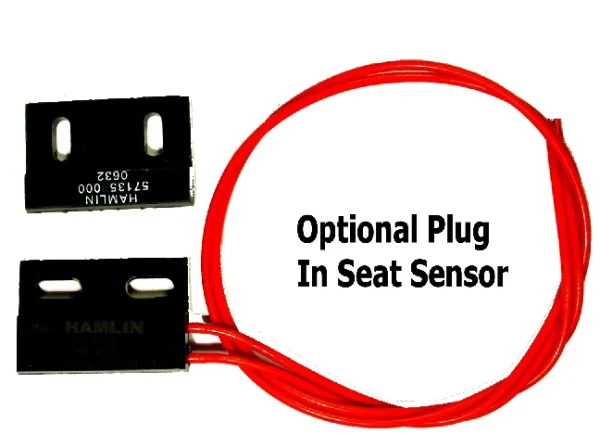

Optional plug in seat sensor (choose above) available, will cause the alarm to sound if the seat is removed.
Difficulty Fitting level 1.5 out of 5. If you can change the indicators fitted to a bike you can fit this alarm system
Installation Summary:
Using the supplied fitting manual locate the power & indicator plugs, insert into the appropriate connectors from the alarm, fit the sounder, fit the LED & connect to their appropriate plugs. Fitting complete, probably less than an hour...(Easy To Follow Comprehenive fitting instructions supplied)

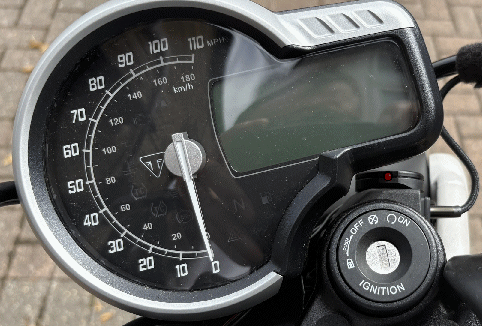

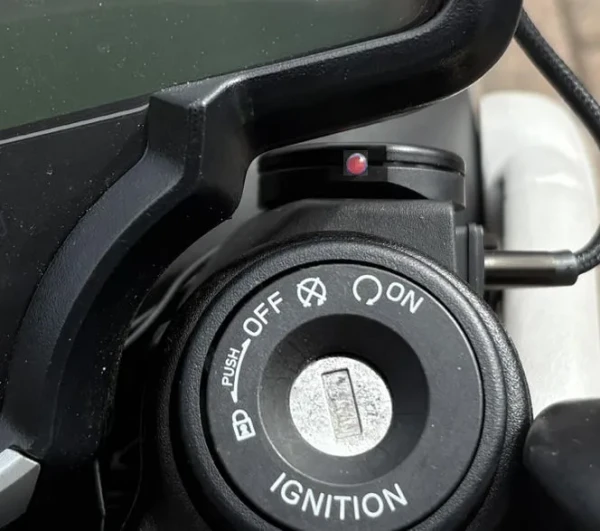

Easyfit LED
Click Here For Video Of Alarm Operating
(Opens a new YouTube window)
Optional extra wiring are two input triggers for accessory protection & an extra siren/pager/texter output, plus one imobiliser circuit (If required these options will needed to be hard wired in after instalation of the kit - immobiliser circuit not recomended for the 400/400x as the alarm is designed to function with the factory immobiliser)
Features:

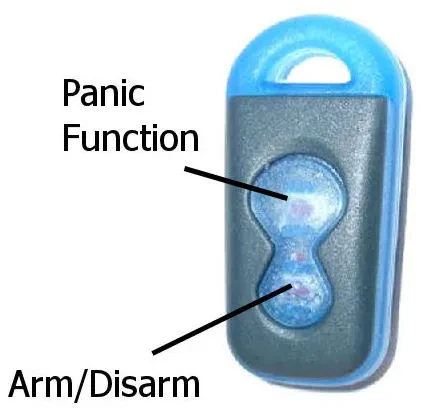

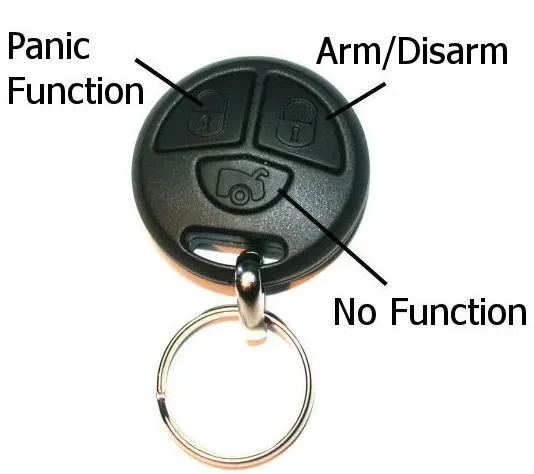

- Two anti-scan / antigrab, rolling code transmitters (one HPA TX, one M2503 fob)
- Passive arming single circuit immobiliser - Not included with this kit however the option is availalbe for the user to hard wire to the bike (User Programmable option)*
- Passive arming for full alarm system (User Programmable option)
- Warning Hazard flash
- Visual and audible arming signals (User Programmable option)
- Secure override facility activated by the owners individual PIN code in the event of loss or damage to transmitters
- Diagnostic LED
- Internal Movement sensor (Not a shock sensor - alarm activates if bike is moved - virtually no false alarms)
- Loud 114db remote siren
- Sleep mode with zero battery drain after 5 days or when the battery drops to a certain level
- Low 1.8 mA current consumption
- Low bike battery warning when disarming
- Auto re-arm of immobilisation if ignition is not turned on within 50 seconds (If fitted/programmed)*
- System test facilities in first 25 seconds of arming informs of any faults
- Panic facility
- Movement sensor deletion facility ( When transporting the bike - Operation Via remote fobs)
- Protection circuit one (negative trigger input) For the protection of panniers etc Trigger switches required (Not Supplied)*
- Protection circuit two (Loop Trigger) Alarm sounds when wire is cut (Used when seat sensor option is chosen)
- Facility to power auxiliary modules (add additional siren/tracker/pager etc)*
- Alarm automatically re-arms if triggered
- Operating temperature -25C to 85C
- Telephone & Email Technical support ( Items Marked *Are not covered by tecnical support - though advice is available )
Product Code: Legos-TR400
